Outline

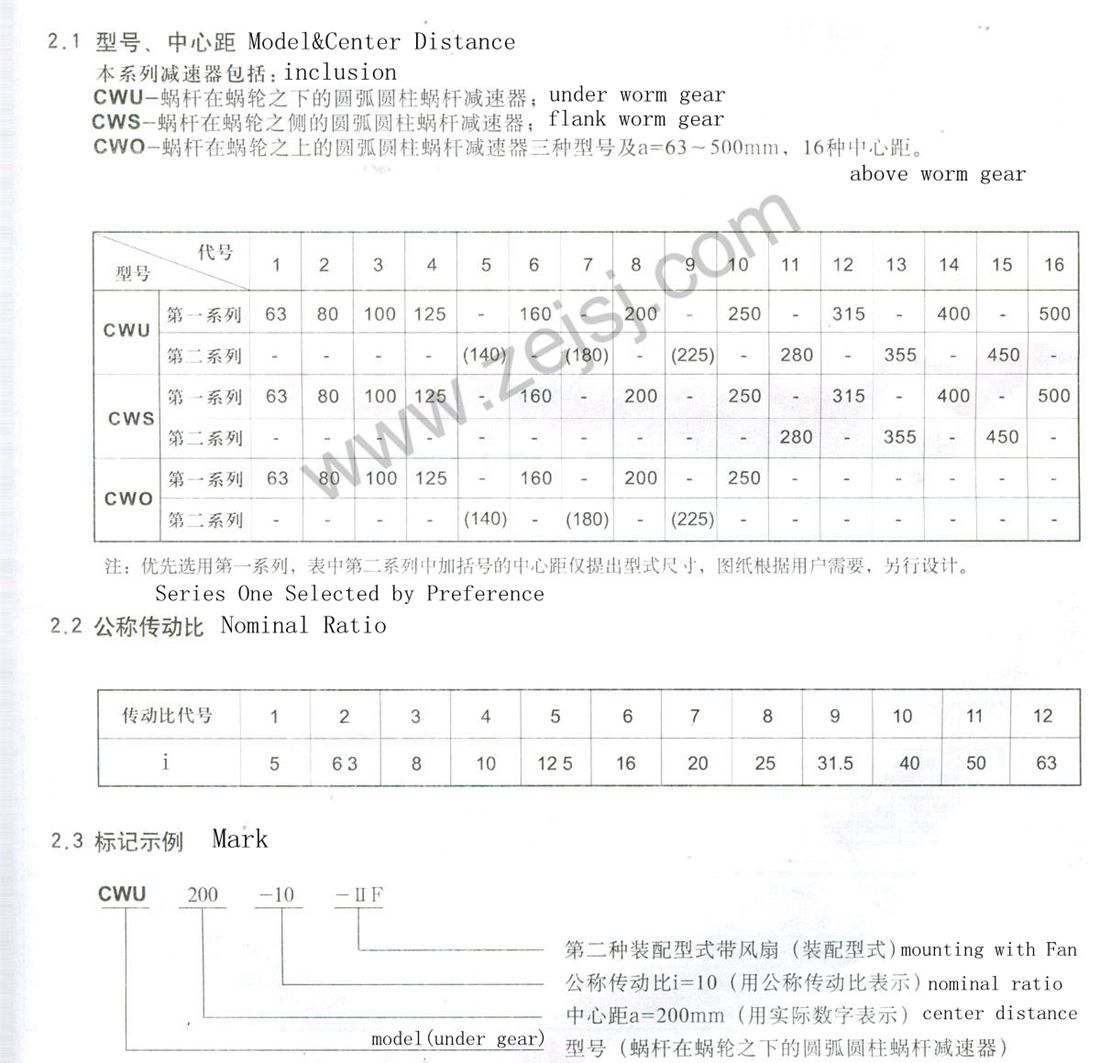

The single-stage worm gear reducer drive, industry-recommended standards JB / T7935-95 (formerly GB GB9147-88), this standard to meet international standards nineties. Full range includes a total of three models, 16 kinds center distance, 12 kinds of ratios. Input power range between 0.39 ~ 189kw, output torque between 107 ~ 13500Nm.
Arc cylindrical worm shaft can be positive, negative two directions transportation, input speed of not more than 1500r / min, the working environment temperature -40 ~ 40 ℃. When the working environment temperature below 0 ℃, before the start of oil must be heated to above 0 ℃: When the working temperature is higher than a bad environment 40 ℃, cooling measures must be taken.
